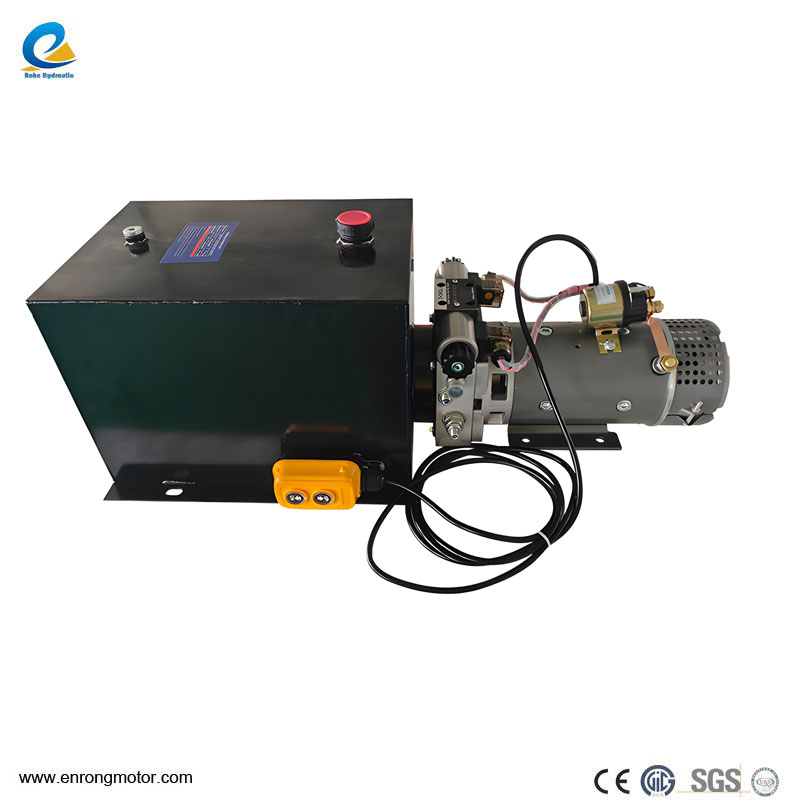

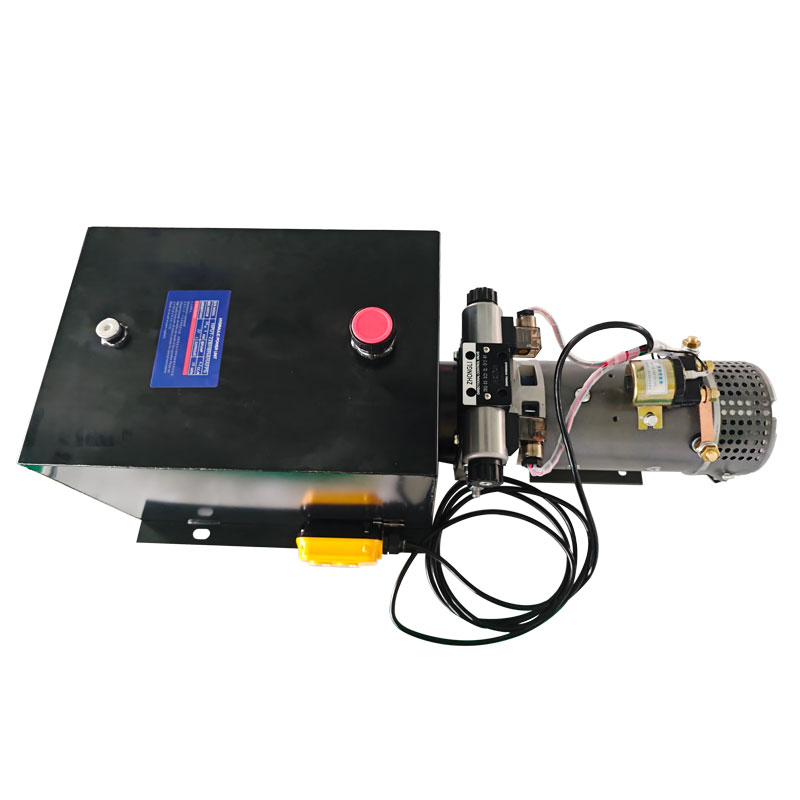

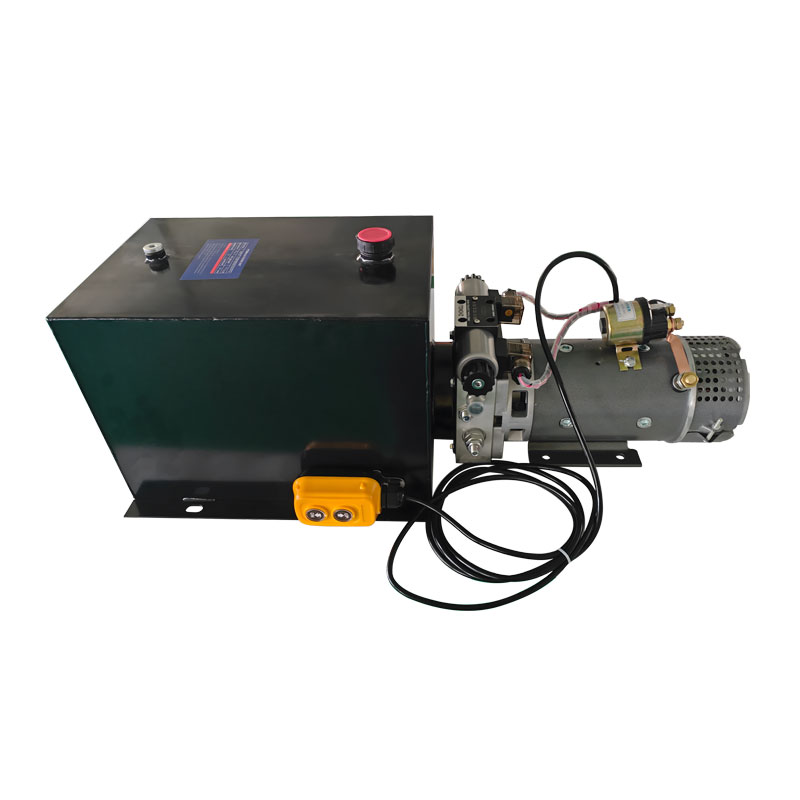

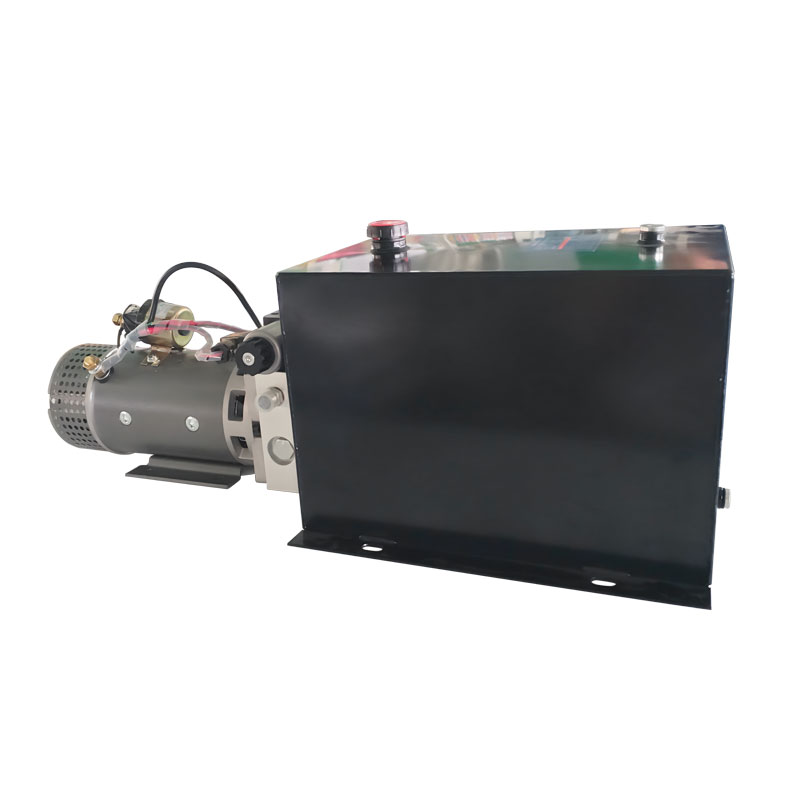

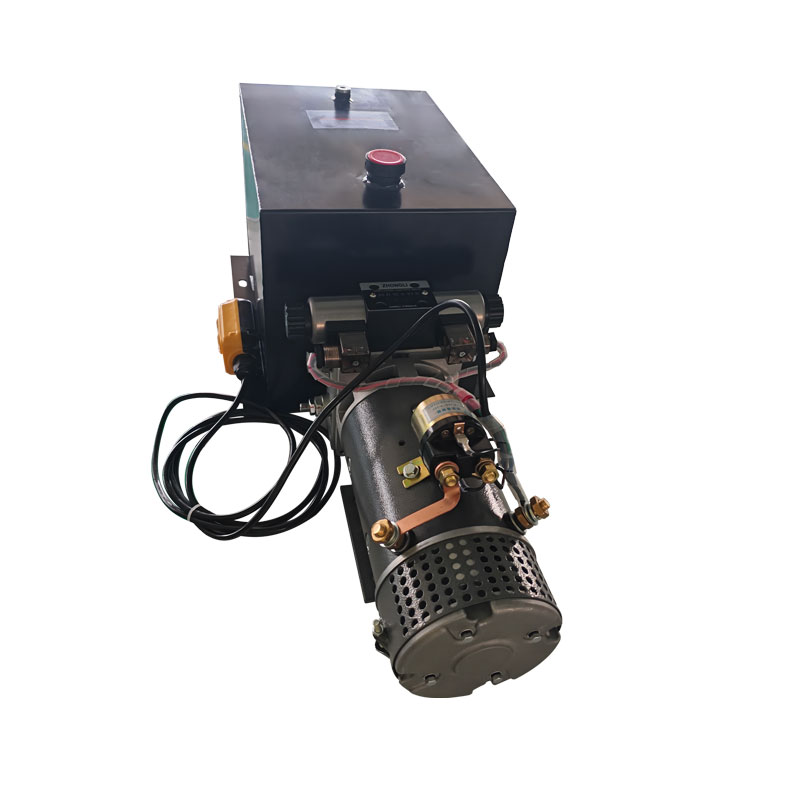

Comprehensive Overview of the Hydraulic Power Unit for Lifting Bridges

Introduction

The hydraulic power unit (HPU) designed for lifting bridges is a state-of-the-art solution that meets the rigorous demands of bridge maintenance and construction. This unit operates on a 24V power supply, has a motor capacity of 4KW, and can handle a maximum pressure of 20MPa. With a displacement of 4.2cc/r and a flow rate of 22 liters per minute, this hydraulic power unit is engineered for efficiency, safety, and reliability, ensuring optimal performance in demanding applications.

Performance Characteristics

Power Output: The hydraulic power unit's 4KW output ensures robust performance, enabling the effective lifting and lowering of heavy bridge components. This power level is ideal for tasks requiring significant force, allowing operators to perform complex maneuvers without overloading the system.

Pressure Rating: With a maximum operating pressure of 20MPa, this hydraulic power unit provides the necessary strength to lift substantial loads safely. This high-pressure capability is crucial for bridge applications, where the weight and stability of the structure must be managed carefully during maintenance or installation.

Displacement and Flow Rate: The hydraulic unit features a displacement of 4.2cc/r and a flow rate of 22 liters per minute. This combination allows for rapid fluid movement, resulting in quick response times during operation. The efficient flow rate is essential for maintaining smooth and controlled movements of the hydraulic actuators, ensuring precise lifting and lowering of bridge elements.

System Efficiency: The hydraulic power unit is designed for high efficiency, minimizing energy loss and maximizing performance. The combination of its motor capacity, pressure rating, and flow rate ensures that energy consumption is optimized, leading to lower operational costs and extended working hours.

Key Features

Robust Construction: The hydraulic power unit is built from high-quality materials that ensure durability and longevity. The design includes corrosion-resistant components and heavy-duty seals that protect against leaks and environmental factors, making it suitable for outdoor use in varying conditions.

Compact and Ergonomic Design: The unit is designed to be compact, facilitating easy integration into bridge lifting systems. Its ergonomic design ensures that operators can handle the equipment comfortably, enhancing productivity during operation.

Advanced Safety Features: Safety is paramount in bridge lifting operations. This hydraulic power unit is equipped with multiple safety features, including pressure relief valves, automatic shut-off mechanisms, and emergency stop buttons. These features protect both operators and equipment from potential hazards associated with hydraulic systems.

User-Friendly Controls: The hydraulic power unit includes intuitive controls that allow operators to manage lifting and lowering operations with precision. The control system is designed for easy access, enabling quick adjustments and immediate response to changes during lifting operations.

Versatile Compatibility: This hydraulic power unit is compatible with various bridge lifting equipment, including hydraulic cylinders, jacks, and lifting frames. Its versatility makes it an ideal choice for contractors and engineers involved in bridge construction and maintenance.

Applications

The hydraulic power unit for lifting bridges is specifically designed for a range of applications, including:

Bridge Construction: In the construction of new bridges, this hydraulic power unit plays a crucial role in lifting and positioning bridge components such as beams and girders. Its reliable power output and precision control facilitate the accurate assembly of complex structures.

Bridge Maintenance: Regular maintenance of bridges is essential for ensuring their safety and longevity. This hydraulic power unit is employed in maintenance tasks that require lifting sections of the bridge for inspection, repair, or replacement. Its high pressure and flow rate make it suitable for handling heavy components efficiently.

Renovation Projects: In renovation projects where existing bridges are being upgraded or modified, the hydraulic power unit provides the necessary lifting power to reposition or replace structural elements. This is particularly important for retrofitting bridges with modern materials or technologies.

Emergency Repairs: In the event of structural issues, emergency repairs may be required to ensure the safety of the bridge. The hydraulic power unit allows for quick deployment and effective lifting capabilities to stabilize or temporarily support affected areas of the bridge.

Research and Testing: Engineers and researchers may utilize this hydraulic power unit in testing scenarios to evaluate the structural integrity of bridge components. Its precise control and powerful lifting capabilities enable detailed assessments during experimental setups.

Technical Specifications

Voltage: 24V

Power: 4KW

Maximum Pressure: 20MPa

Displacement: 4.2cc/r

Flow Rate: 22L/min

Conclusion

The hydraulic power unit for lifting bridges is an essential component in the realm of civil engineering, offering a combination of power, efficiency, and safety. Its robust construction, advanced safety features, and versatile applications make it an invaluable asset for contractors, engineers, and maintenance teams involved in bridge projects. Whether for new construction, maintenance, or emergency repairs, this hydraulic power unit provides the reliability and performance necessary to ensure successful outcomes in complex lifting operations.

By prioritizing user-friendly controls and high efficiency, this hydraulic power unit enables operators to perform their tasks with confidence, enhancing productivity and safety in bridge lifting applications. As infrastructure needs continue to evolve, the hydraulic power unit stands out as a modern solution tailored to meet the challenges of today's bridge construction and maintenance demands.
